Summary

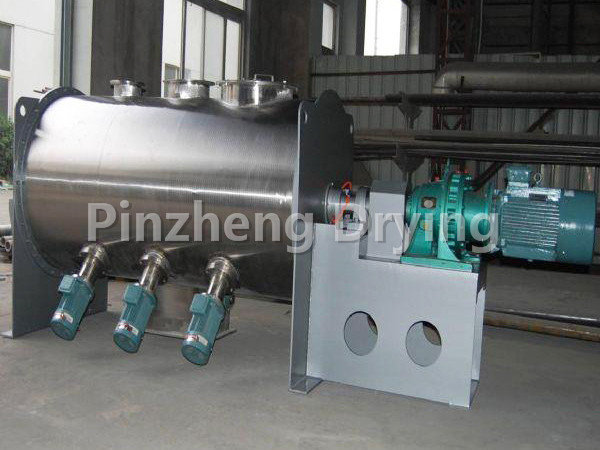

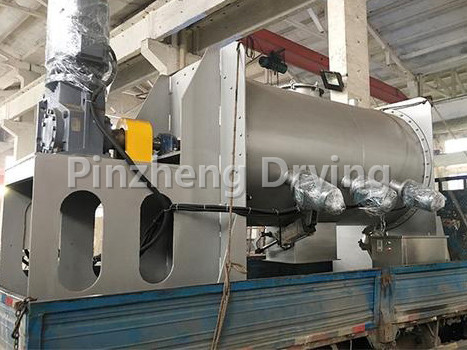

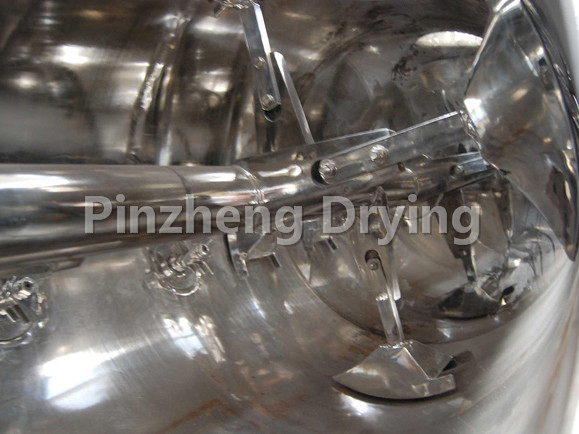

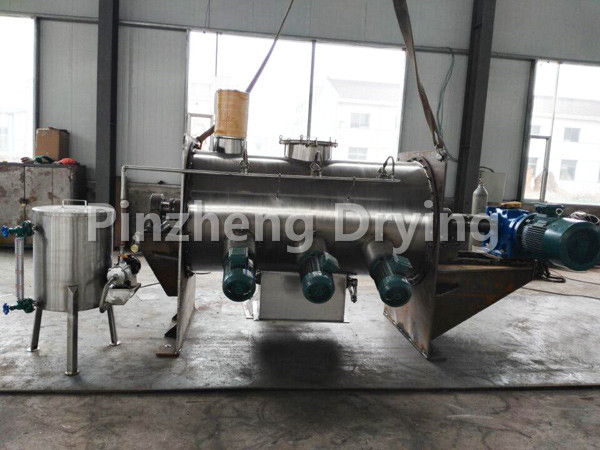

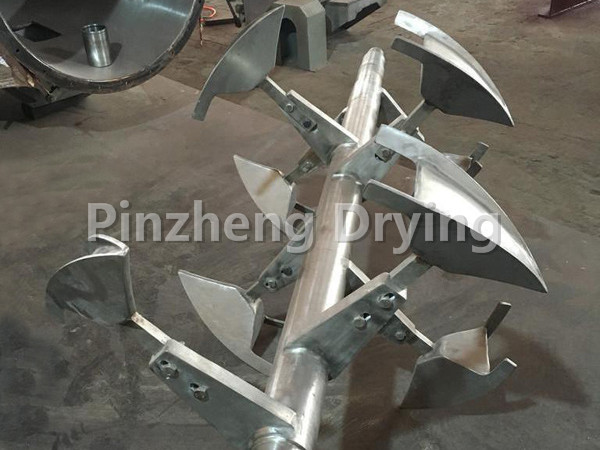

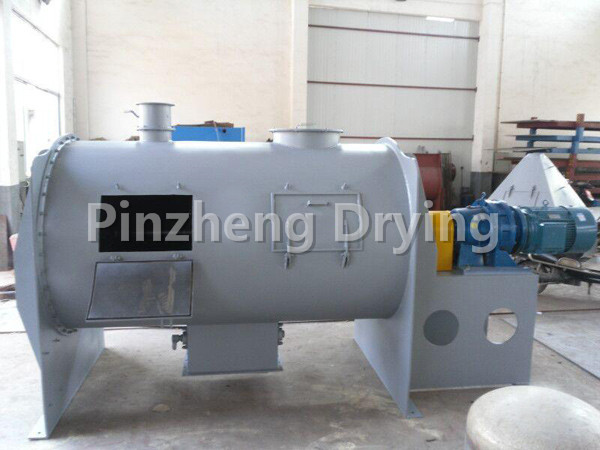

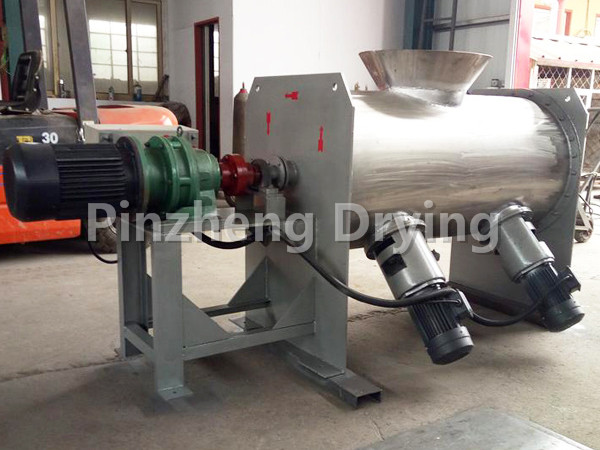

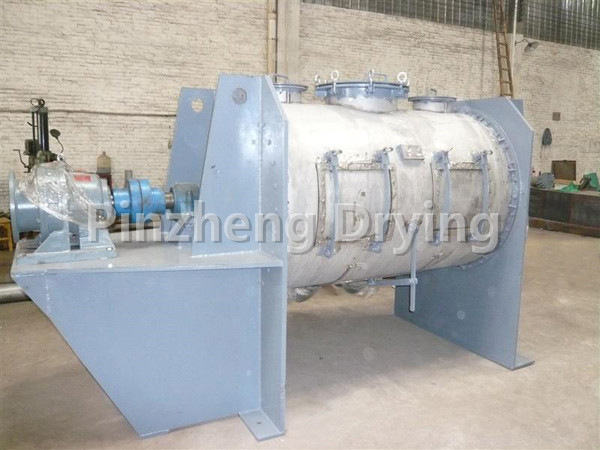

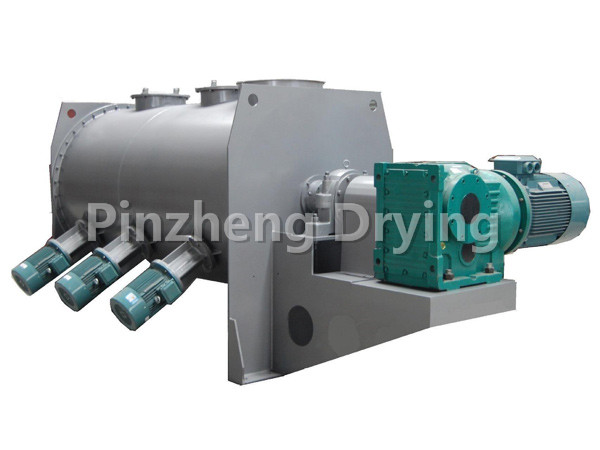

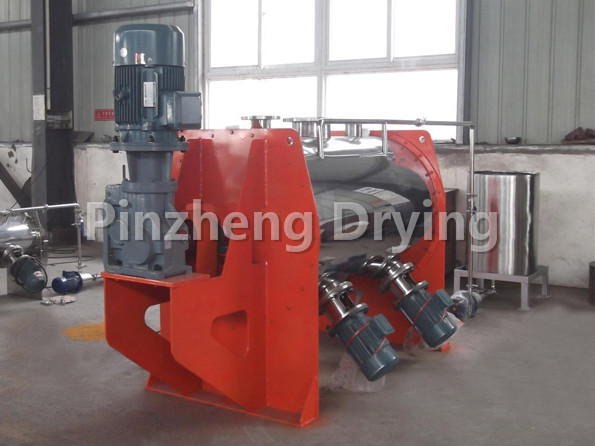

This model is composed of four parts: transmission mechanism, horizontal cylinder, plough and flying knife. The material is axially supported along the cylinder wall under the action of the plough. When the material flows through the flying knife, it is thrown by the flying knife with high speed, so as to achieve uniform mixing in a short time.
Scope of application
It is applied to the mixing of solid-solid (powder and powder), solid-liquid (a small amount of liquid is added to the powder), as well as wet granulation, drying and other composite processes in chemical, pharmaceutical, veterinary medicine, food, feed, feed additives, plastics and other industries; Especially suitable for mixing viscous or colloidal additives.
Model/parameter | LDH-0.1 | LDH-0.3 | LDH-0.5 | LDH-1 | LDH-2 | LDH-4 | LDH-6 | LDH-8 | LDH-10 | LDH-12 | LDH-15 |
Primary mixing（kg） | 40-60 | 120-180 | 200-300 | 400-600 | 800-1200 | 1600-2400 | 2400-3600 | 3200-4800 | 4000-6000 | 4800-7200 | 6000-9000 |
Installed power（kw） | 3.7 | 7.7 | 8.5 | 15.5 | 23 | 28 | 33 | 37 | 41 | 48 | 56 |
Equipment weight（kg） | 430 | 950 | 1100 | 1800 | 2520 | 3220 | 6750 | 7200 | 7500 | 8500 | 9200 |
