Summary

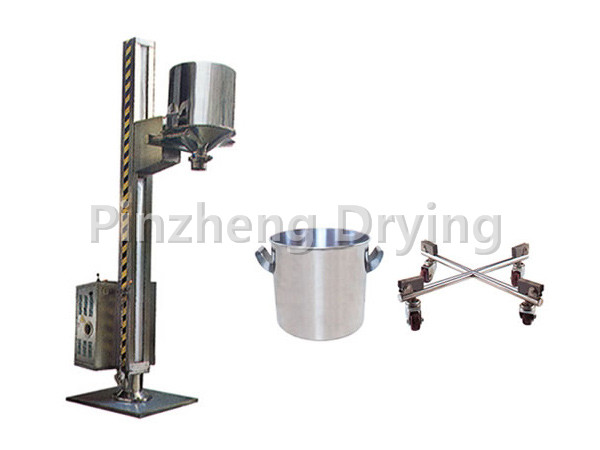

??TJG series fixed lifting feeder is composed of two parts, namely hoist and base. The hoist is composed of frame, hydraulic lifting system and material door turnover mechanism. When working, first buckle the material door of the elevator and the material barrel, start the lifting lever, the material door and the material barrel rise together, start the turning lever, and the material barrel can rotate 180 degrees, take the bottom barrel upward posture and move to the required position. It is easy to add the material into the required process equipment by using the discharge butterfly valve on the material door.

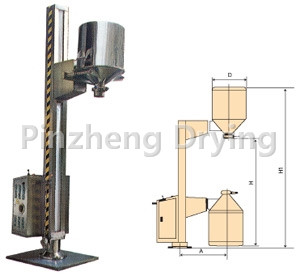

| Model, specification and parameters | H | A | D | H1 |
| TJG-50 | 2050 | 650 | Φ485 | 2900 |
| TJG-100 | 2050 | 750 | Φ590 | 2900 |

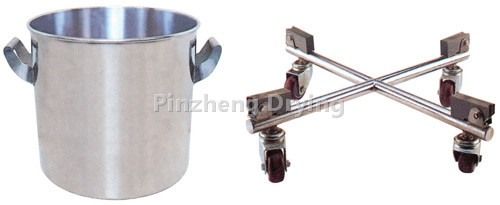

| Name | Loading capacity（kg） | Specification (barrel diameter × Height) | Wall thickness（mm） |
| Charging basket | 50 | Φ485×460 | 0.8 |
| 100 | Φ590×550 | 0.8 | |
| Special bucket truck | 50-100 | Φ500×600 |
