Summary

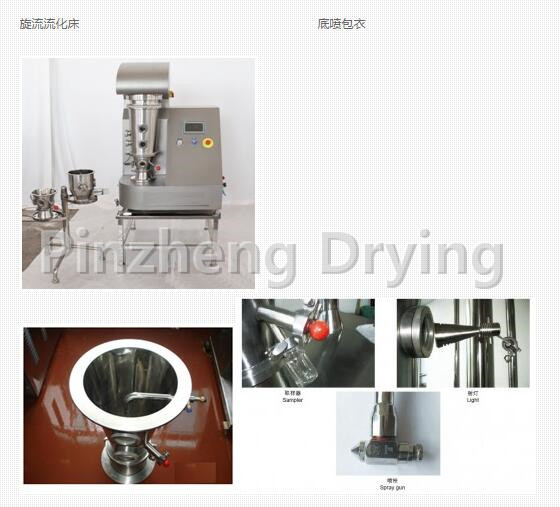

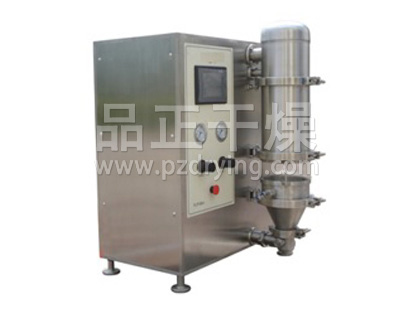

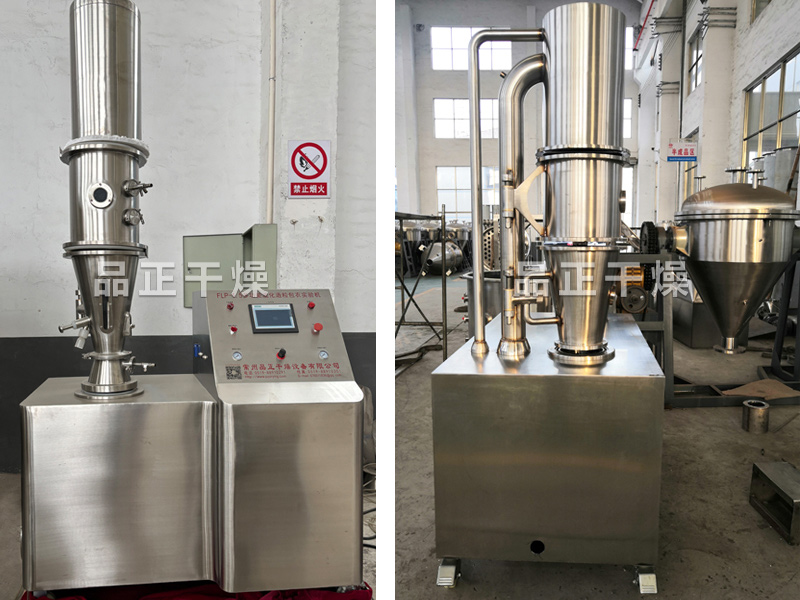

FLP multi-function fluidization granulation coating experimental machine is a multifunctional equipment integrating spray drying, granulation, centrifugal pelleting and fluidization coating drying. This machine is compatible with various process operations. It is especially suitable for granulation, pill making and coating of multiple varieties and dosage forms in pharmaceutical, food, chemical and other industries.
Characteristic
1. It integrates granulation, pill making, coating and drying.
2. Granulation of powder materials.
3. Powder material coating.
4. Pellets are made from powder materials.
5. Traditional Chinese medicine spray granulation and coating.
6. Prepare 10-30 mesh large granule granules.
7. Thin film, enteric coating, slow and controlled release coating of powder, granules and pills.
8. Smell masking, moisture-proof, anti-oxidation, waterproof, heat insulation, coloring, isolation coating.
9. Powder, granular and pellet materials are dry.
FLP多功能流化造粒包衣實(shí)驗(yàn)機(jī)
Specifications Item | FLP-Mini Table model | FLP -0.5 Table model | FLP-1.5 Table model | FLP-3 Table model/Vertical | FLP-5 Table model/Vertical |
Productive power(Kg/Batch) | 0.05-0.2 | 0.2-0.5 | 0.5-1.5 | 1-3 | 3-5 |
Applicable scope of fluid (g/cm3) | ＜1.3 | ||||
Water content of finished product(%) | Up to 0.5 | ||||
Container volume (L) | 2.5-3 | 3-3.8 | 3-7 | 6-10 | 8-15 |
Diameter (mm) | 200 | 250 | 300 | 350 | 400 |
Fan power (Kw) | 0.75 | 2.2 | 3 | 4 | 4 |
Electrical heating (Kw) | 1.5 | 1.5 | 3 | 6 | 9 |
Rotating motor power (Kw) | 0.18 | 0.37 | 0.55 | 0.75 | |
Compressed air pressure(Mpa) | 0.4-0.6 | ||||
Compressed air consumption(m3/min) | 0.2 | 0.3 | 0.35 | 0.6 | 0.4 |
Operating temperature(℃) | Normal temperature - 100 ℃ adjustable | ||||
Main dimensions of products(L×W×H) | See installation layout for details | ||||
